LED lightbox with glass plate holder


The LED lightbox is also available without a glass plate holder

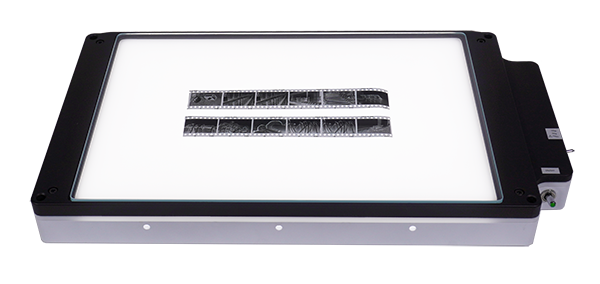

Rencay LED Lightbox 5000-D50

the right solution for sensitive materials

The RENCAY LED lightbox allows the professional digitization of a wide variety of originals. The originals are not exposed to any UV / IR radiation. The heating of the originals remains minimal. Special holders, e.g. for glass plates, allow easy and gentle handling.


  • High light intensity (switchable) for originals with high density
  • D50 illuminat for perfect color reproduction
  • Newest LED technology for low heating and high efficiency
  • Without fan - no vibrations for high resolution reproductions
  • Various holders as accessories for easy and careful handling of a wide variety of originals
  • Rimless lighted area, made of glass for easy handling of the originals and easy cleaning
  • Control input for foot switch or external control

Overview of the technical data:

  • Usable area 27 x 40 cm
  • Light intensity (switchable in 3 steps; The switch has the advantage that the set intensity can be reproduced)
    • LOW ca. 23000 Lux
    • MIN ca. 3500 Lux
    • MAX ca. 40000 Lux
  • Light color 5000 K
  • CRI min. 99 (D50 light color is almost 100% achieved)
  • Switchable - no warm-up time
  • Power consumption approx. 90W (operation via external power supply)
  • Removable glass plate for easy cleaning or easy replacement
  • Thermal decoupling via air between the opaque glass and the upper glass plate
  • Housing milled from aluminum; also serves as cooling for the LEDs


Switch for operation and intensity

Feet that can be adjusted from above for perfect parallelism to the camera

Precisely adjustable glass plate holder with minimal contact with the originals
